Switchgear Panel Transformer Fuse
The Circuit Protection Technology

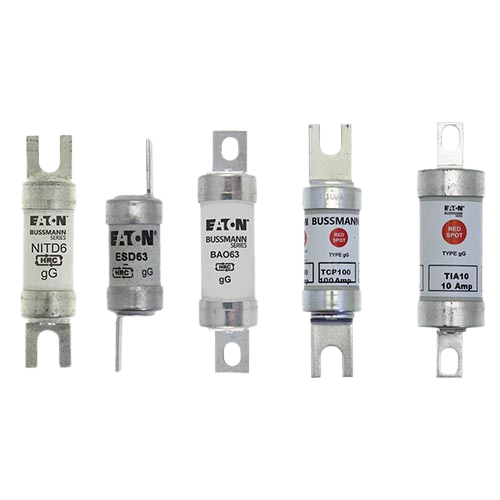

LV Transformer Fuse- A fuse is a type of over-current protective device that is designed to be a sacrificial element in an electrical power system. Low voltage fuses are defined as fuses with a voltage rating less than or equal to 1,500V
- A fuse is a type of over-current protective device that is designed to be a sacrificial element in an electrical power system. Low voltage fuses are defined as fuses with a voltage rating less than or equal to 1,500V
-
Voltage - Up to 1500 V
-
Current - 2 to 500A
-
Short Circuit Capacity - 33 kA

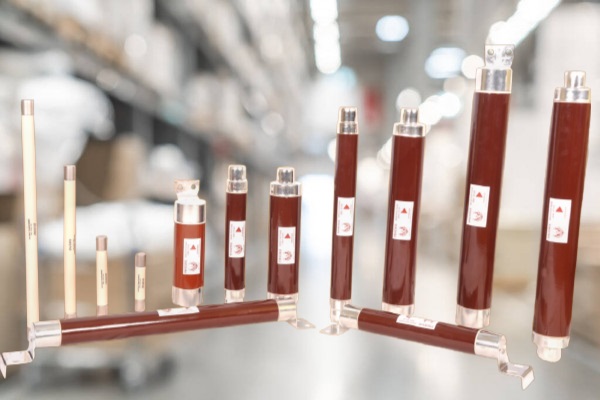

HT Fuse
- HT HRC Fuses consist of a ceramic body with a Silver fuse filament (based on Ampere rating) and a striker pin mechanism. In case of any fault, the striker pin comes out with pre-defined force. HRC fuses provide a faster option for tripping as against relay based protection.
- HT HRC Fuses consist of a ceramic body with a Silver fuse filament (based on Ampere rating) and a striker pin mechanism. In case of any fault, the striker pin comes out with pre-defined force. HRC fuses provide a faster option for tripping as against relay based protection.
- Type -BS /IEC/ DIN
- Voltage- 3.3, 7.2, 12, 24 and 36 kV
- Current - Up to 500A Short circuit
- Capacity - 25, 40, 63 kA
